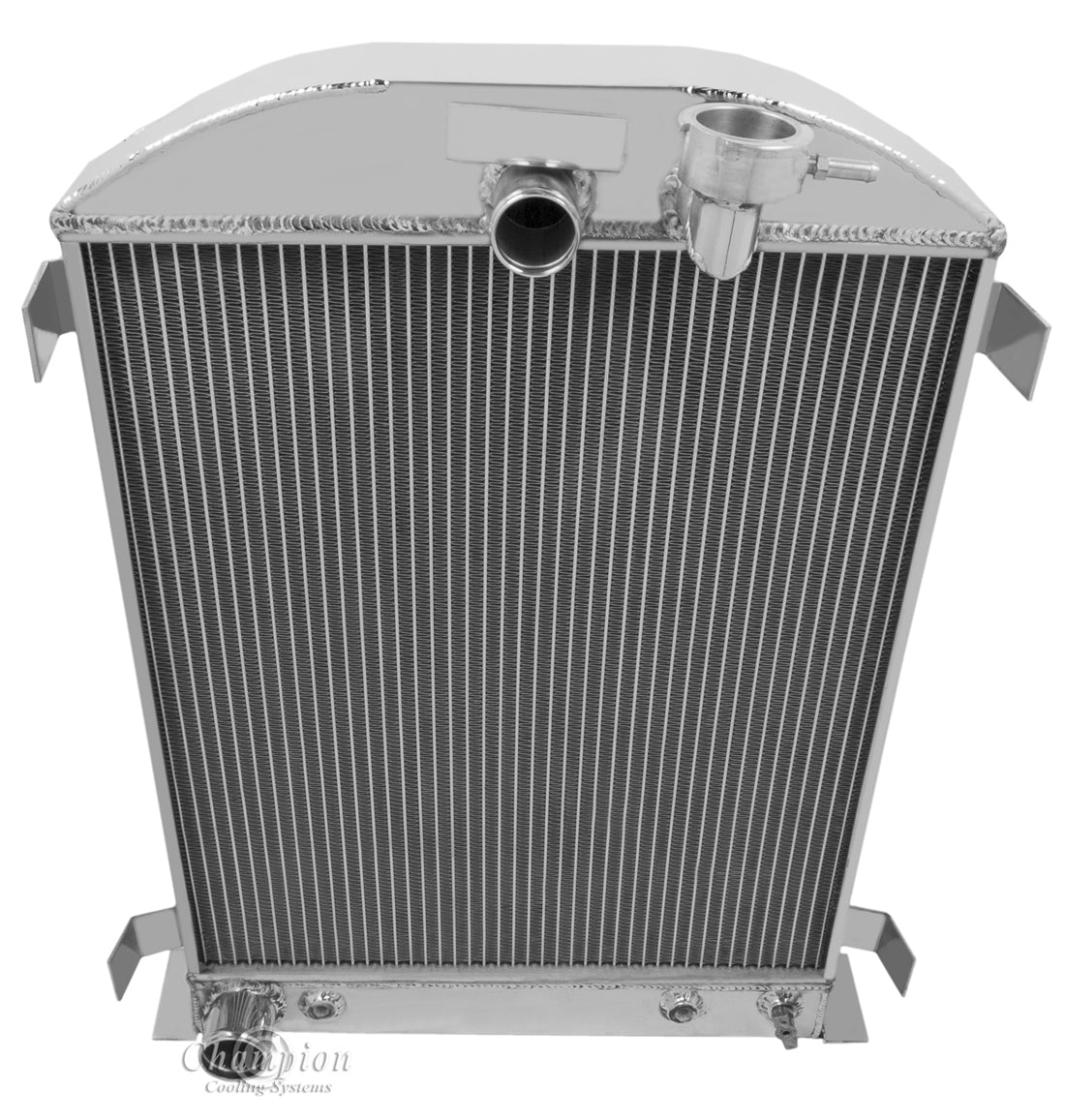

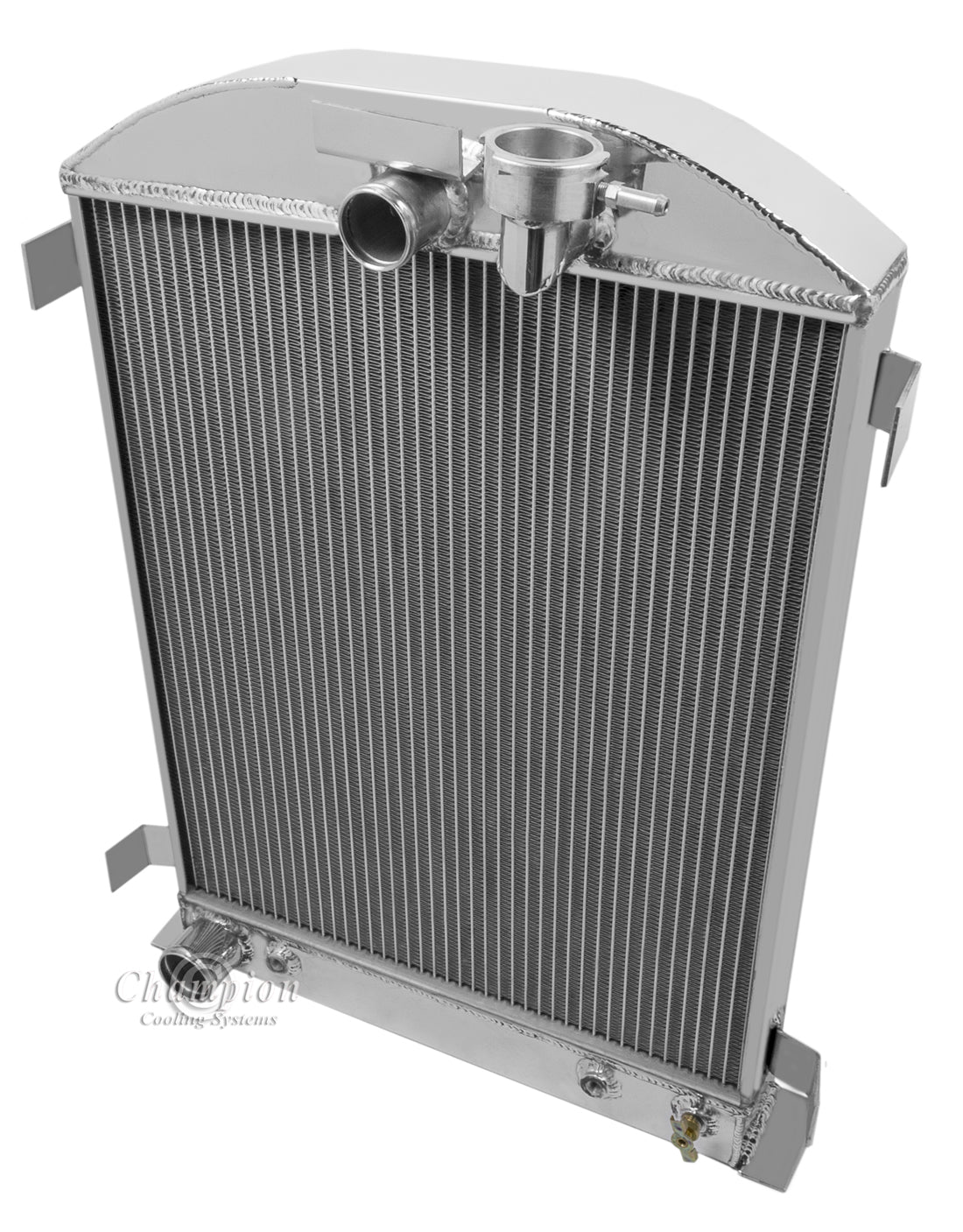

1932 FORD MODEL B 3.3 L RADIATOR CHACC3032B BRAND NEW RADIATOR WITH FREE 1 YEAR WARRANTY

Down Flow Or Cross Flow Type: Down Flow | Core Height: 20 | Core Width: 17.25 | Overall Height: 25.5 | Overall Width: 19.75 | Core Thickness: 2.5 | Core Row Quantity: 3 Row | Mounting Type: Flanges | Inlet Location: Center | Inlet Diameter: 1.5 | Outlet Location: Driver | Outlet Diameter: 1.75 | Internal Transmission Oil Cooler: Yes | Transmission Oil Cooler Fitting Type: 1/8-27NPT | Tank Material: Aluminum | Core Material: Aluminum | Filler Neck Attached: Yes | Core Tube Width: 0.75

CC3032B

3 Row

Length: 29

Width: 9

Height: 24

Note: Designed for Engine Conversion (Ford V8 - Upper Center / Lower Driver)
