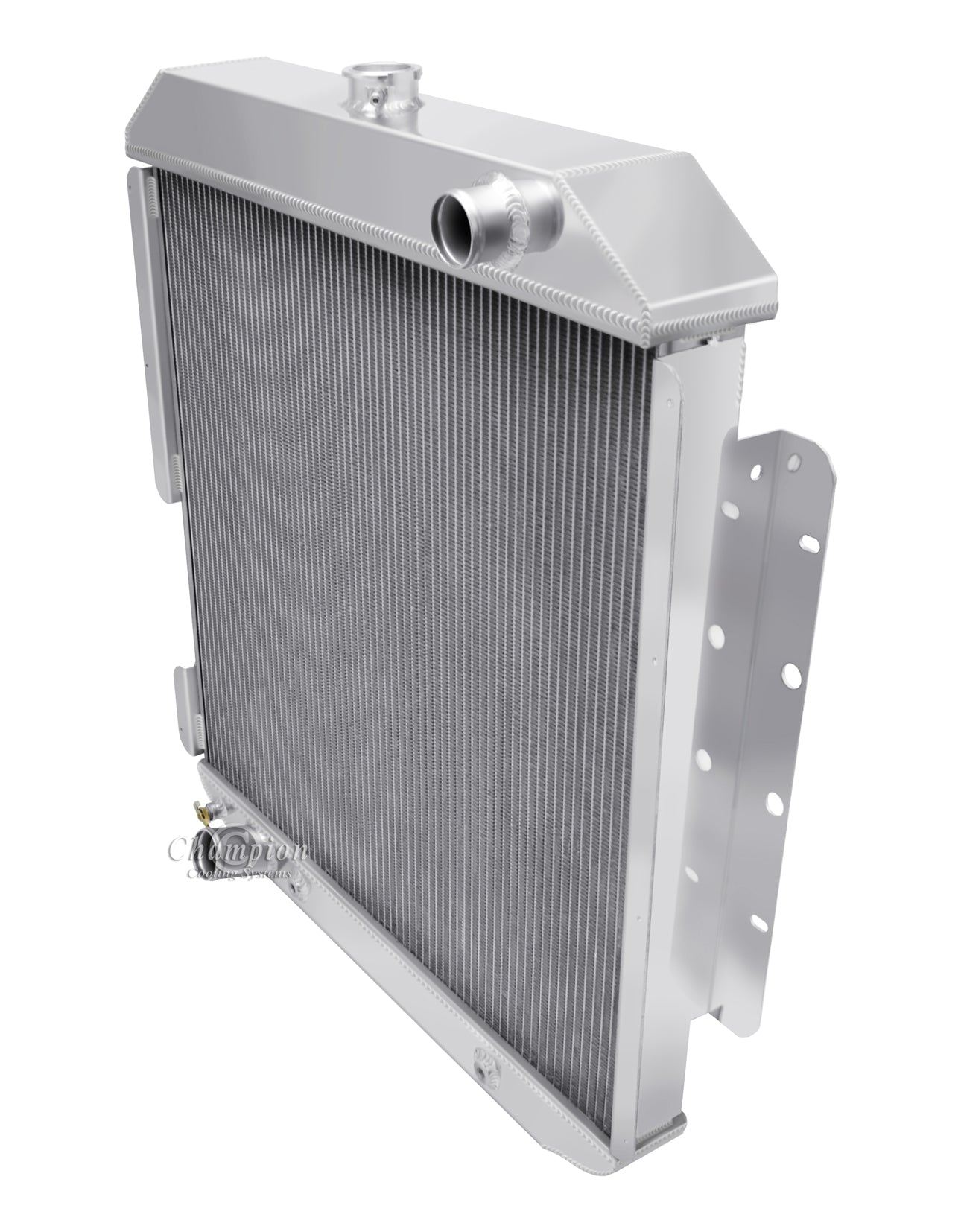

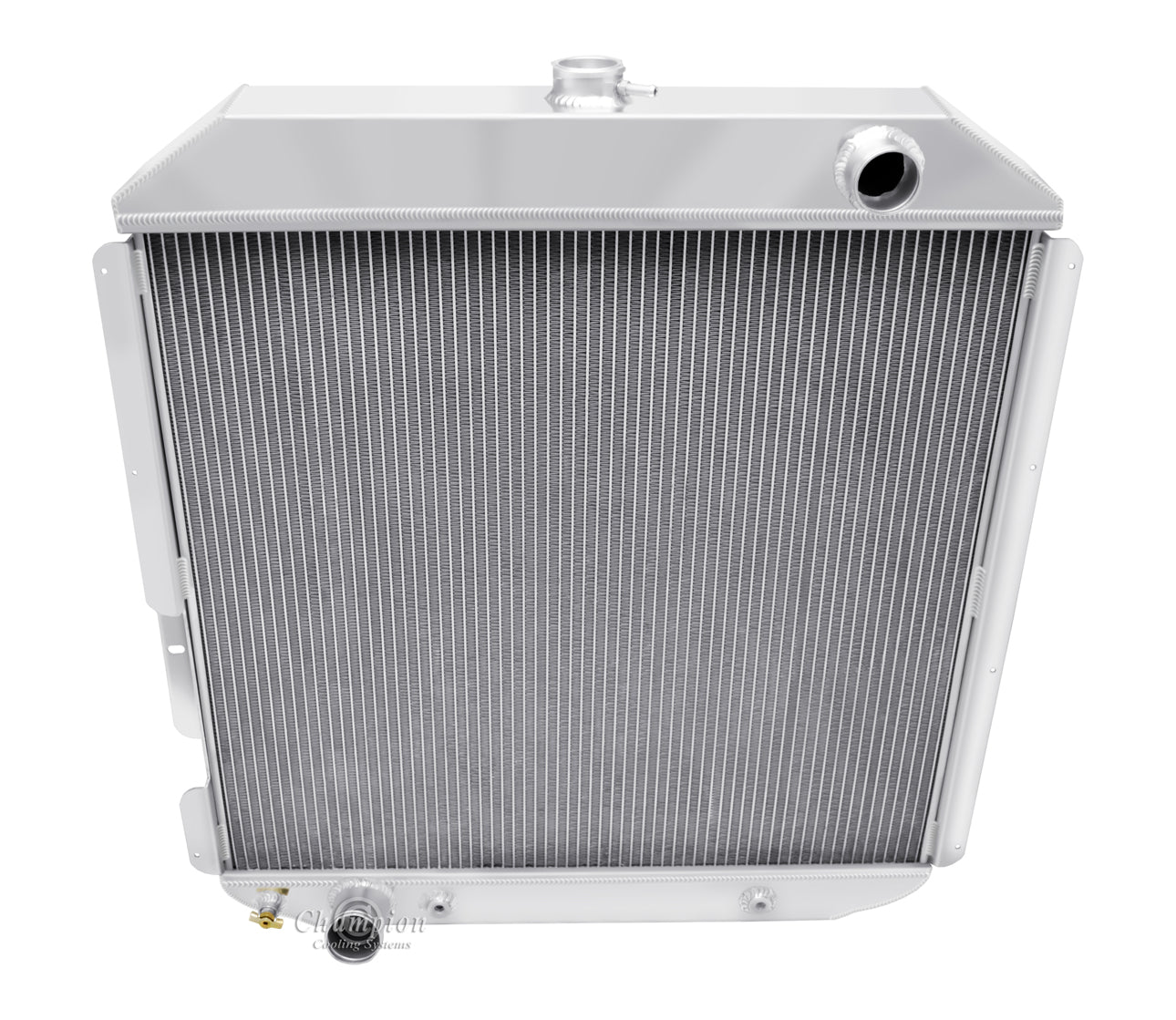

1979 FORD BRONCO 5.8 L RADIATOR CHACC545 BRAND NEW RADIATOR WITH FREE 1 YEAR WARRANTY

Down Flow Or Cross Flow Type: Down Flow | Core Height: 24.25 | Core Width: 25.875 | Overall Height: 31.125 | Overall Width: 29.875 | Core Thickness: 2.25 | Core Row Quantity: 3 Row | Mounting Type: Bracket | Inlet Location: Passenger | Inlet Diameter: 1.75 | Outlet Location: Driver | Outlet Diameter: 2 | Internal Transmission Oil Cooler: Yes | Transmission Oil Cooler Fitting Type: 1/8-27NPT | Tank Material: Aluminum | Core Material: Aluminum | Filler Neck Attached: Yes | Core Tube Width: 0.63

CC545

3 Row

Length: 36

Width: 8

Height: 34

Note: "Front Flange, Fits DPI#545 and DPI#1502"
